Aetherion C++ API Reference

This page documents the public C++ API extracted from source headers via Doxygen and rendered by Breathe. All templated types are compatible with both double and CppAD::AD<double> unless stated otherwise.

Spatial Algebra

Rigid-body spatial vectors, transforms, and operators following the spatial vector algebra conventions of Featherstone (2008).

Storage conventions (used throughout the library):

• Aetherion::Spatial::Twist — packed 6-vector \([\omega;\,v]\): indices 0–2 angular velocity [rad/s], 3–5 linear velocity [m/s].

• Aetherion::Spatial::Wrench — packed 6-vector \([M;\,F]\): indices 0–2 moment [N·m], 3–5 force [N] (moment-first, consistent with the inner product \(P = \mathbf{f}^\top\mathbf{v}\)).

Key types and free functions:

• Twist<S> / Wrench<S> / Momentum<S> / Inertia<S> — fundamental spatial quantities.

• skew(v) — 3×3 skew-symmetric (cross-product) matrix.

• ad(xi) / ad_star(xi) / ad_star_times(xi, y) — Lie-algebra adjoint operators.

• CrossMotion / CrossForce — spatial cross-product operators.

• MotionTransformMatrix / ForceTransformMatrix / TransformMotion / TransformForce — 6×6 spatial transforms between frames.

• ShiftWrenchToNewPoint — re-express a wrench from point P to point Q.

• Power — instantaneous spatial power \(P = \mathbf{f}^\top\mathbf{v}\) [W].

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Lie-Group ODE Solvers

SO(3) / SE(3) exponential maps, left Jacobians, and the RKMK family of structure-preserving integrators.

The RKMK (Runge–Kutta–Munthe-Kaas) framework advances differential equations that evolve on Lie groups by composing exponential maps rather than naive Euclidean steps, preserving the manifold structure of the solution at each stage.

Sub-modules:

• Aetherion::ODE::RKMK::Lie — \(\mathrm{SO}(3)\) and \(\mathrm{SE}(3)\) exponential/logarithm maps and left Jacobians.

• Aetherion::ODE::RKMK::Core — Butcher tableaux, stage packing, Newton solver, and C++20 concepts constraining integrator template parameters.

• Aetherion::ODE::RKMK::Integrators — concrete Radau IIA integrators on \(SE(3)\) and the product manifold \(SE(3) \times \mathbb{R}^n\).

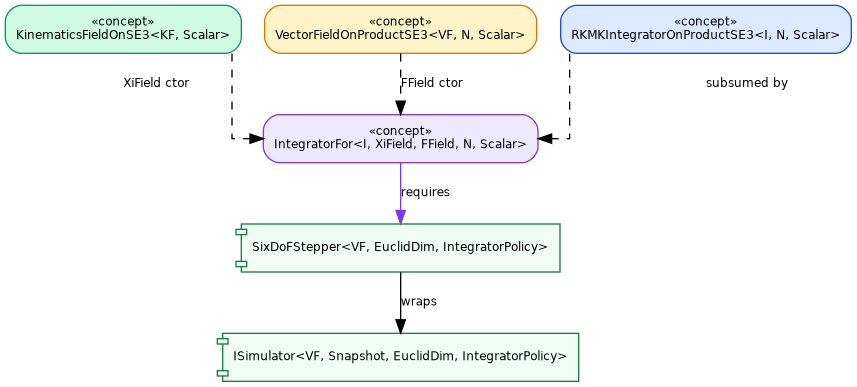

Integrator concept hierarchy — four C++20 concepts constrain every component of the integration stack:

Concept hierarchy for the Aetherion RKMK integration stack

The four concepts, in dependency order:

Concept	Contract
KinematicsFieldOnSE3<KF, Scalar>	kf(t, g, xi) → Matrix<Scalar,6,1> — maps body-frame twist to \(\mathfrak{se}(3)\) velocity.
VectorFieldOnProductSE3<VF, N, Scalar>	vf(t, g, x) → Matrix<Scalar,N,1> — Newton-Euler right-hand side on \(SE(3) \times \mathbb{R}^N\).
RKMKIntegratorOnProductSE3<I, N, Scalar>	I::step(t0, g0, x0, h, opt) → StepResult; StepResult exposes {g1, x1, converged}.
IntegratorFor<I, XiField, FField, N, Scalar>	Combines RKMKIntegratorOnProductSE3 and std::constructible_from<I, XiField, FField>. This is the concept that gates the IntegratorPolicy template parameter of SixDoFStepper and ISimulator.

Plugging in a custom integrator — any type that satisfies IntegratorFor<I, KinematicsXiField, VF, N> can replace the default Radau IIA scheme without changing any other part of the stack:

// 1. Define your integrator (must be constructible from (XiField, FField)).
template<class XiField, class FField, int N>
class MyExplicitRKMK4 {
public:
    using VecE      = Eigen::Matrix<double, N, 1>;
    using StepResult = /* ... */;

    MyExplicitRKMK4(XiField xi, FField f);
    StepResult step(double t0, const SE3<double>& g0,
                    const VecE& x0, double h,
                    const NewtonOptions& opt) const;
};

// 2. Verify the concept at compile time (optional but recommended).
using KFd     = RigidBody::KinematicsXiField;
using MyVF    = RigidBody::VectorField<CentralGravityPolicy>;
using MyIntg  = MyExplicitRKMK4<KFd, MyVF, 7>;

static_assert(ODE::RKMK::IntegratorFor<MyIntg, KFd, MyVF, 7>);

// 3. Drop it into the stepper or simulator.
//    EuclidDim (second parameter) defaults to 7 and can be increased for
//    augmented-state use cases such as Kalman-filter bias estimation.
using MyStepper   = RigidBody::SixDoFStepper<MyVF, 7, MyIntg>;
using MySimulator = Simulation::ISimulator<MyVF, Snapshot1, 7, MyIntg>;

// Extended Euclidean dimension (e.g. for KF augmented states):
// using KFStepper = RigidBody::SixDoFStepper<MyVF, 10, MyExtendedIntg>;

// The default (Radau IIA RKMK, EuclidDim = 7) is used when all extra
// parameters are omitted:
using DefaultStepper   = RigidBody::SixDoFStepper<MyVF>;
using DefaultSimulator = Simulation::ISimulator<MyVF, Snapshot1>;

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Flight Dynamics

State-vector construction, kinematics field, and physics policy interfaces.

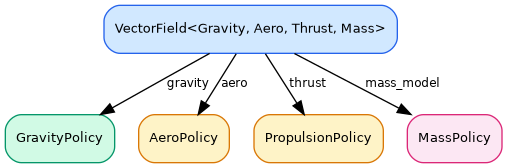

VectorField composition — the four policy slots of Aetherion::RigidBody::VectorField:

VectorField<Gravity, Aero, Thrust, Mass> — policy composition

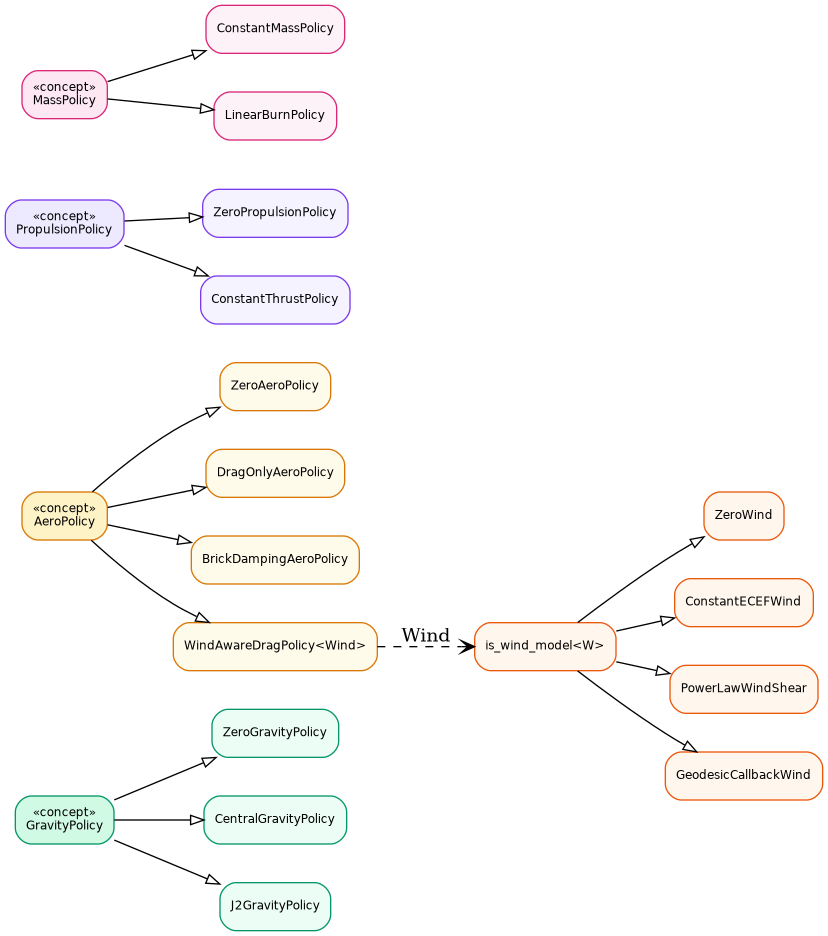

Policy hierarchy — built-in implementations for each slot:

Gravity, Aero, Propulsion, and Mass policy families

Policy system — Aetherion::RigidBody::VectorField is templated on four policy types. Each policy must satisfy the corresponding C++20 concept:

Concept	Required signature	Built-in policies
GravityPolicy	Wrench<S> operator()(const SE3<S>&, S mass) const	ZeroGravityPolicy, CentralGravityPolicy, J2GravityPolicy
AeroPolicy	Wrench<S> operator()(const SE3<S>&, const Matrix<S,6,1>&, S mass, S t) const	ZeroAeroPolicy
PropulsionPolicy	same as AeroPolicy	ZeroPropulsionPolicy, ConstantThrustPolicy
MassPolicy	S mdot(S t, S mass) const	ConstantMassPolicy, LinearBurnPolicy

All policies satisfy their concept for both S = double and S = CppAD::AD<double> (enforced by static_assert at definition time).

Aetherion::RigidBody::KinematicsXiField implements the right-trivialised kinematic equation \(\dot{g} = g\,\hat{\xi}\) as a stateless identity pass-through (the body-frame twist is the Lie-algebra velocity in this formulation).

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Rigid Body

The 6-DoF rigid-body simulation layer built on top of the Spatial and FlightDynamics modules.

State manifold \(SE(3) \times \mathbb{R}^7\):

• g ∈ SE(3) — attitude (rotation matrix) and ECI position.

• ν_B ∈ ℝ⁶ — body-frame twist \([\omega_B;\,v_B]\) [rad/s | m/s].

• m ∈ ℝ — current vehicle mass [kg].

Key types:

• Aetherion::RigidBody::State — full state on \(SE(3) \times \mathbb{R}^7\).

• Aetherion::RigidBody::InertialParameters — mass, inertia tensor about CoG, CoG offset (all in body frame).

• Aetherion::RigidBody::VectorField — Newton-Euler ODE right-hand side, templated on physics policies.

• Aetherion::RigidBody::SixDoFStepper — high-level facade with three template parameters: VectorField, EuclidDim (default 7), and IntegratorPolicy (default Radau IIA RKMK), all constrained by IntegratorFor.

• Aetherion::RigidBody::StateLayout — flat 14-element index map for serialised state vectors.

Note

SixDoFStepper<VF> is a shorthand for SixDoFStepper<VF, 7, RadauIIA_RKMK_ProductSE3<KinematicsXiField, VF, 7>>. Pass an explicit EuclidDim (≥ 7) to extend the Euclidean state for augmented-state applications (e.g. Kalman-filter bias states occupy slots 7…EuclidDim−1; pack() zero-initialises them and unpack() ignores them). Pass an explicit IntegratorPolicy to swap in any integrator satisfying IntegratorFor<I, KinematicsXiField, VF, EuclidDim> — see the Lie-Group ODE Solvers section for a worked example.

State vector representations

Two complementary representations are used throughout the library.

Manifold representation — Aetherion::RigidBody::State

The state lives on the product manifold \(SE(3) \times \mathbb{R}^7\):

\[x \;=\; \bigl(g,\;\nu_B,\;m\bigr) \;\in\; SE(3) \times \mathbb{R}^6 \times \mathbb{R},\]

where

• \(g = (R_{WB},\,\mathbf{p}_W) \in SE(3)\) — pose: body-to-inertial rotation matrix and ECI position of the CoM.

• \(\nu_B = [\boldsymbol{\omega}_B;\,\mathbf{v}_B] \in \mathbb{R}^6\) — body-frame twist: angular velocity [rad/s] stacked above linear velocity [m/s].

• \(m \in \mathbb{R}\) — current vehicle mass [kg].

The Lie-group part \(g\) is advanced by the RKMK integrator directly on the \(SE(3)\) manifold; the Euclidean part \([\nu_B;\,m] \in \mathbb{R}^7\) is advanced by the standard Euclidean ODE solver.

Serialised representation — Aetherion::RigidBody::StateLayout

For file I/O, finite-difference Jacobians, or any context that requires a contiguous \(\mathbb{R}^{14}\) vector, the state is packed in this order:

Indices	Constant	Size	Quantity
0–2	IDX_P	3	ECI position \(\mathbf{p}_W\) [m]
3–6	IDX_Q	4	Unit quaternion \(q_{WB}\) stored as \((w,\,x,\,y,\,z)\) — scalar part first
7–9	IDX_W	3	Body angular velocity \(\boldsymbol{\omega}_B\) [rad/s]
10–12	IDX_V	3	Body linear velocity \(\mathbf{v}_B\) [m/s]
13	IDX_M	1	Vehicle mass \(m\) [kg]

Total: \(N = 14\) elements (StateLayout::N).

Note

The quaternion \(q_{WB}\) represents the rotation that maps vectors from body frame \(B\) to inertial frame \(W\). Storage order is scalar-first: \((w, x, y, z)\), satisfying \(w^2 + x^2 + y^2 + z^2 = 1\).

The corresponding rotation matrix is \(R_{WB}\) stored in \(g\). Both \(g\) (manifold) and the serialised \(q_{WB}\) (flat vector) encode the same orientation; BuildInitialState populates them from the same configuration, and they remain consistent throughout integration.

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Environment

Atmospheric models, gravity acceleration models, and WGS-84 geodetic constants.

• US Standard Atmosphere 1976 — density, pressure, temperature, and speed of sound as functions of altitude. CppAD-friendly.

• Gravity models — CentralGravity(r, mu) (inverse-square) and J2(r, mu, Re, J2) (first zonal harmonic).

• WGS-84 constants — kSemiMajorAxis_m, kFlattening, kGM_m3_s2, kJ2, kEarthAngularVelocity_rad_s and others in Aetherion::Environment::WGS84.

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Coordinate Transforms

Geodetic ↔ ECEF ↔ ECI conversions, NED frame utilities, and attitude decomposition.

Frame definitions used throughout:

• ECI (Earth-Centred Inertial) — origin at Earth’s centre, axes fixed to distant stars; used as the integration frame.

• ECEF (Earth-Centred Earth-Fixed) — same origin, rotates with Earth at \(\dot{\theta}_{ERA}\).

• NED (North-East-Down) — local tangent frame at a surface point; right-handed with x = North, y = East, z = Down.

• Body — x forward, y right, z down.

All functions accept a template scalar S and are CppAD-friendly.

Transform chain (forward — local to inertial):

Geodetic (φ, λ, h)
    → ECEF  [GeodeticToECEF]
    → ECI   [ECEFToECI, requires θ_ERA]
    → launch state [MakeLaunchStateECI]

Transform chain (inverse — inertial to local):

ECI position
    → ECEF  [ECIToECEF]
    → Geodetic (φ, λ, h)  [ECEFToGeodeticWGS84]
    → NED   [ECEFToNED / ECIToNED]
    → local orientation  [QuaternionToAzZenRollNED]

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Serialization

JSON (de)serialization for all configuration and state types, built on nlohmann/json.

• LoadConfig(filename) / LoadConfig(json) — load a Aetherion::RigidBody::Config from a JSON file or a pre-parsed nlohmann::json object.

• LoadConfigFromString(str) — parse and validate a JSON string directly (throws std::runtime_error on empty input, parse failure, or schema mismatch).

• from_json / to_json specialisations for all configuration structs: GeodeticPoseNED, VelocityNED, BodyRates, InertialParameters, AerodynamicParameters, and Config.

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml

Simulation Framework

Application base class, argument parser, simulator interface, and telemetry types.

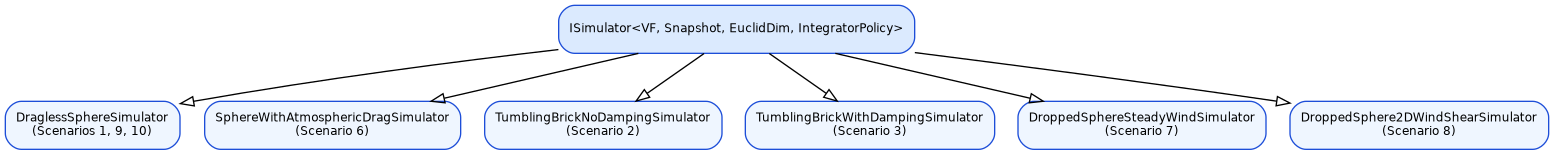

Simulator class hierarchy — all concrete simulators inherit from Aetherion::Simulation::ISimulator:

The full signature is ISimulator<VF, Snapshot, EuclidDim, IntegratorPolicy> where EuclidDim defaults to 7 and IntegratorPolicy defaults to RadauIIA_RKMK_ProductSE3. Existing two-parameter instantiations ISimulator<VF, Snapshot> are unchanged. Increase EuclidDim to extend the Euclidean state (e.g. for Kalman-filter augmentation). Pass a custom IntegratorPolicy to use an alternative integrator.

TwoStageRocketSimulator<EuclidDim, IntegratorPolicy> uses the same parameters directly (without inheriting ISimulator) because it requires mutable access to the state for the discontinuous staging mass drop.

ISimulator inheritance — one concrete class per NASA scenario group

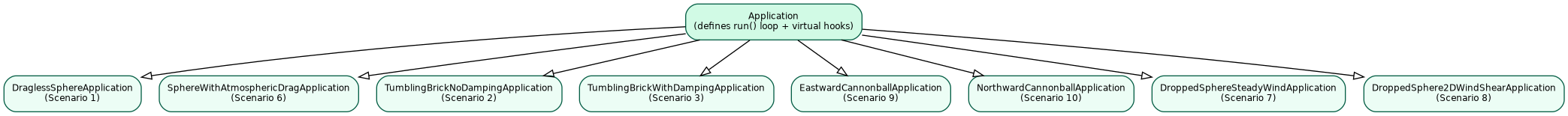

Application class hierarchy — concrete applications follow the Template Method pattern defined in Aetherion::Simulation::Application:

Application inheritance — one concrete subclass per scenario executable

Template Method pattern — Aetherion::Simulation::Application defines the simulation loop in run() and exposes the following virtual hooks for subclasses to override:

Hook	Responsibility
prepareSimulation()	Allocate and initialise all simulation objects before the loop starts.
writeInitialSnapshot(ofstream&)	Write the \(t=0\) state to the output CSV.
stepAndRecord(ofstream&, double t, bool doWrite)	Advance by one time step; write to CSV only when doWrite is true.
logFinalSummary()	Print end-of-simulation diagnostics.

Aetherion::Simulation::ArgumentParser parses --timeStep, --startTime, --endTime, --inputFileName, --outputFileName, and --writeInterval from argv, throwing std::invalid_argument on unknown flags, missing values, or constraint violations.

Warning

doxygennamespace: Cannot find file: /home/runner/work/Aetherion/Aetherion/doc/doxygen/xml/index.xml
